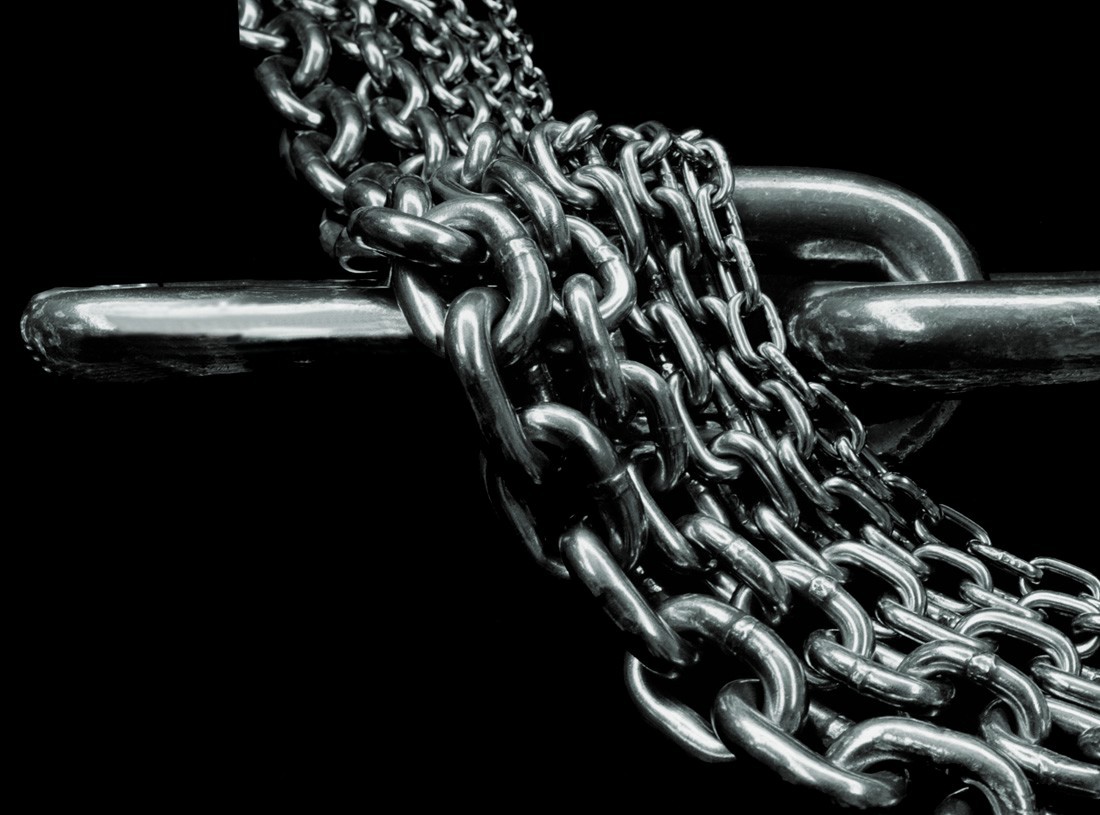

Anchor chain in stainless steel calibrated

Quality stainless steel anchor chain

The Stainless Steel chain is the third component in this truly unique Ground Tackle System.

The tensile strength is significantly higher than galvanized steel chain and the polished stainless steel surface has a self-cleaning effect which allows the smooth running of the chain.

Technical specifications are listed in the price sheet.

• Maximum realibity by higher breaking forces
• Exactly calibrated acc. to DIN 766/ISO 4565
• With an extra plane and clean surface by a special treatment
• 1.4404 (Aisi 316L) reduced carbon
• DUPLEX 1.4462 (Aisi 318 LN) with a very high sea water resistance (price on demand)

The chain prices refer to the current meter. Please put the quantity in the shopping cart according to the desired total number of metres. (Example: chain length 15 meters – 15 units of measure).
!PLEASE NOTE THAT WE HAVE A MINIMUM ORDER QUANTITY OF 15 METERS!

Technical Data

Art. No. 8022

• 6 mm Stainless steel, Cromox,  1.4404, Din 766, ISO 4565, G6
• Breakingforce: 37,5 kN
• Weight: 0.78 kg/m
• Pren-Wert: 23.1 – 28.5
• CPT(°C): 24.0 – 27.5

Art. No. 80221

• 6 mm Stainless steel, Cromox, 1.4462, Din 766, ISO 4565 and AS 2321,G6 PLUS, DUPLEX
• Breakingforce: 38,5 kN
• Weight: 0.78 kg/m
• Pren-Wert: 30.85 – 38.07
• CPT(°C): 27.5 – 34.5

Art. No.  8023

• 8 mm Stainless steel, Cromox,  1.4404, Din 766, ISO 4565, G6
• Breakingforce: 63,0 kN
• Weight: 1.35 kg/m
• Pren-Wert: 23.1 – 28.5
• CPT(°C): 24.0 – 27.5

Art. No. 80231

• 8 mm Stainless steel, Cromox, 1.4462, Din 766, ISO 4565 and AS 2321,G6 PLUS, DUPLEX
• Breakingforce: 66,0 kN
• Weight: 1.35 kg/m
• Pren-Wert: 30.85 – 38.07
• CPT(°C):   27.5 – 34.5

Art. No. 8024

• 10×28 mm Stainless steel, Cromox, 1.4404, Din 766, ISO 4565, G6
• Breakingforce: 100,0 kN
• Weight: 2.30 kg/m
• Pren-Wert: 23.1 – 28.5
• CPT(°C): 24.0 – 27.5

Art. No. 80241

• 10×28 mm Stainless steel, Cromox, 1.4462, Din 766, ISO 4565 and AS 2321,G6 PLUS, DUPLEX
• Breakingforce: 104,0 kN
• Weight: 2.25 kg/m
• Pren-Wert: 30.85 – 38.7
• CPT(°C):  27.5 – 34.5

Art. No. 8025

• 13 mm Stainless steel, Cromox 1.4404, Din 766, ISO 4565, G6
• Breakingforce: 167,0 kN
• Weight: 3.90 kg/m
• Pren-Wert:  23.1 – 28.5
• CPT(°C):   24.0 – 27.5

Art. No. 80251

• 13 mm Stainless steel, Cromox, 1.4462, Din 766, ISO 4565 and AS 2321,G6 PLUS, DUPLEX
• Breakingforce:  177,0 kN
• Weight: 3.90 kg/m
• Pren-Wert: 30.85 – 38.7
• CPT(°C):  27.5 – 34.5
