SWI TEC Personal Winch S Klasse with Dyneema Line

SWI-TEC Personal Winch “S Klasse” with Dyneema line.

 The new generation of SWI-TEC.

• Safety lifting and lowering of persons
• Multi-purpose
• Gear ratio 1 : 10
• Solid material and workmanship
• Two designs available

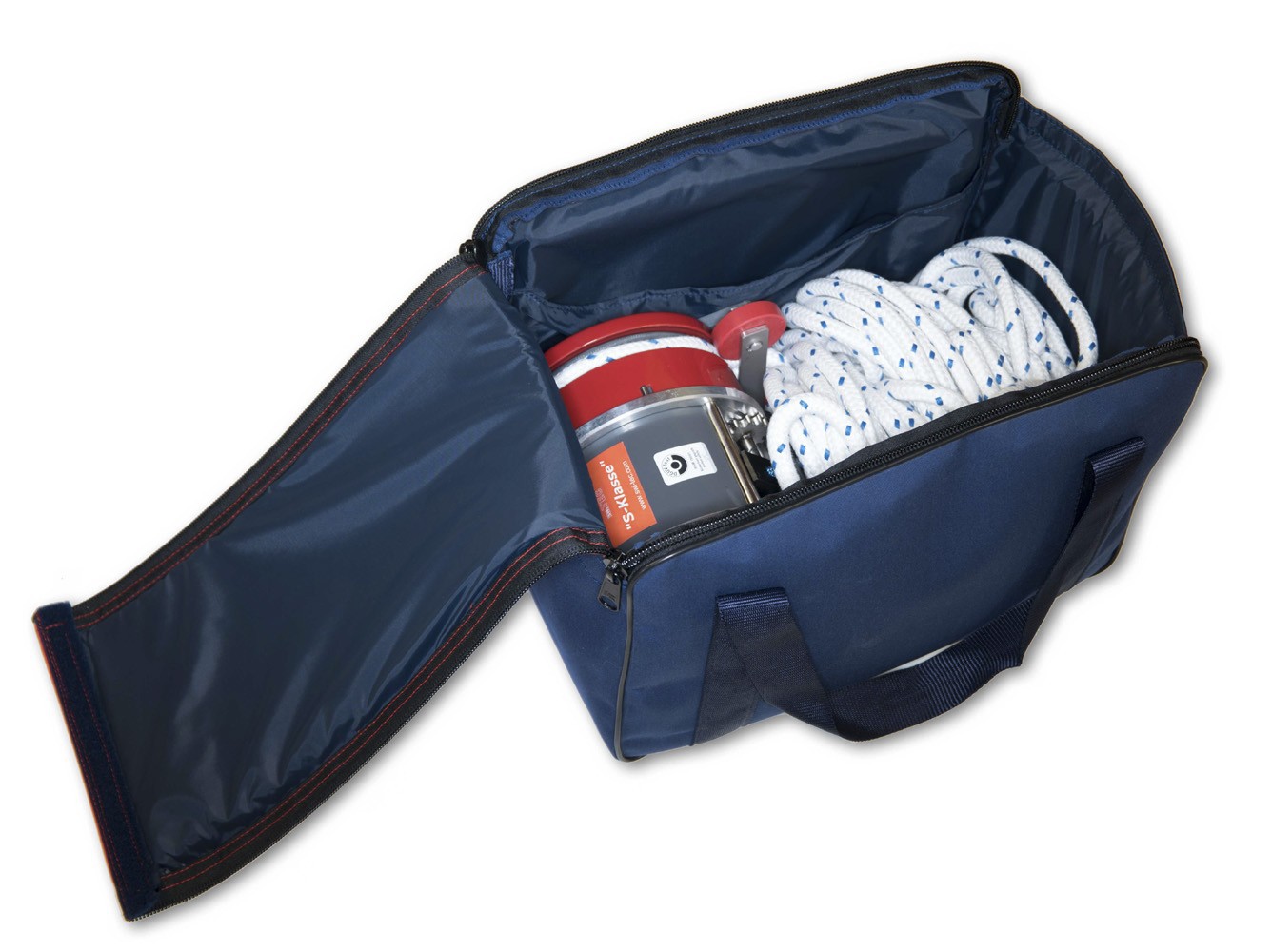

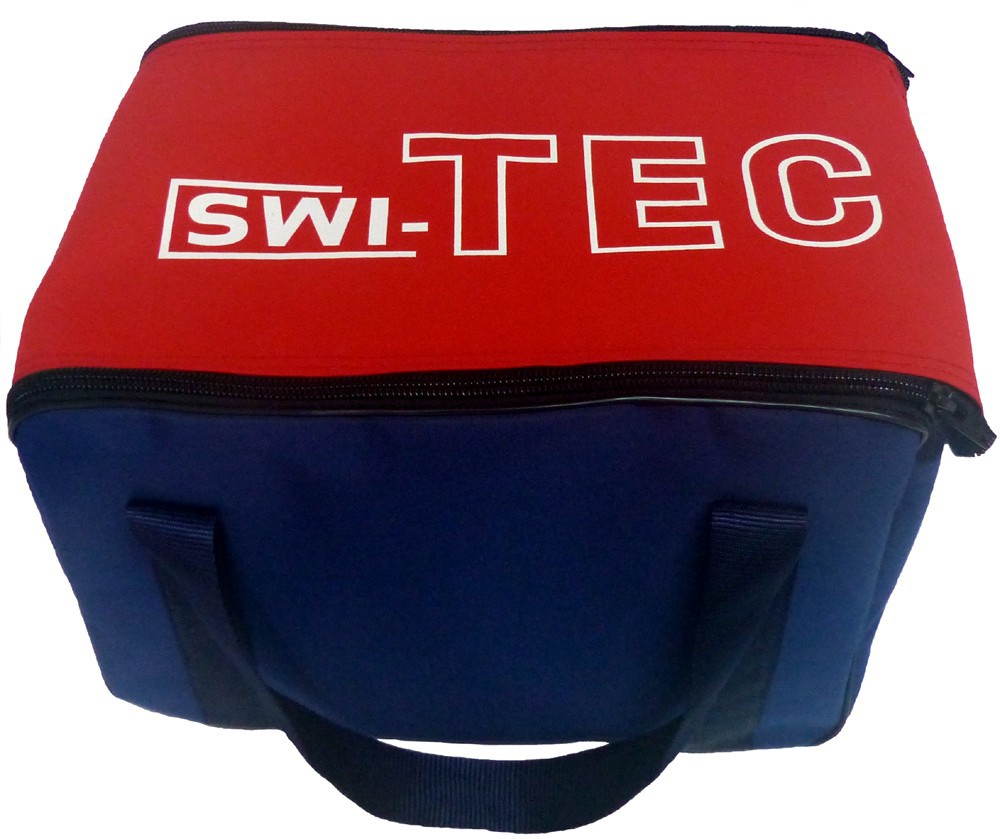

• Small floor space required (bag as accessories available)
• GS tested

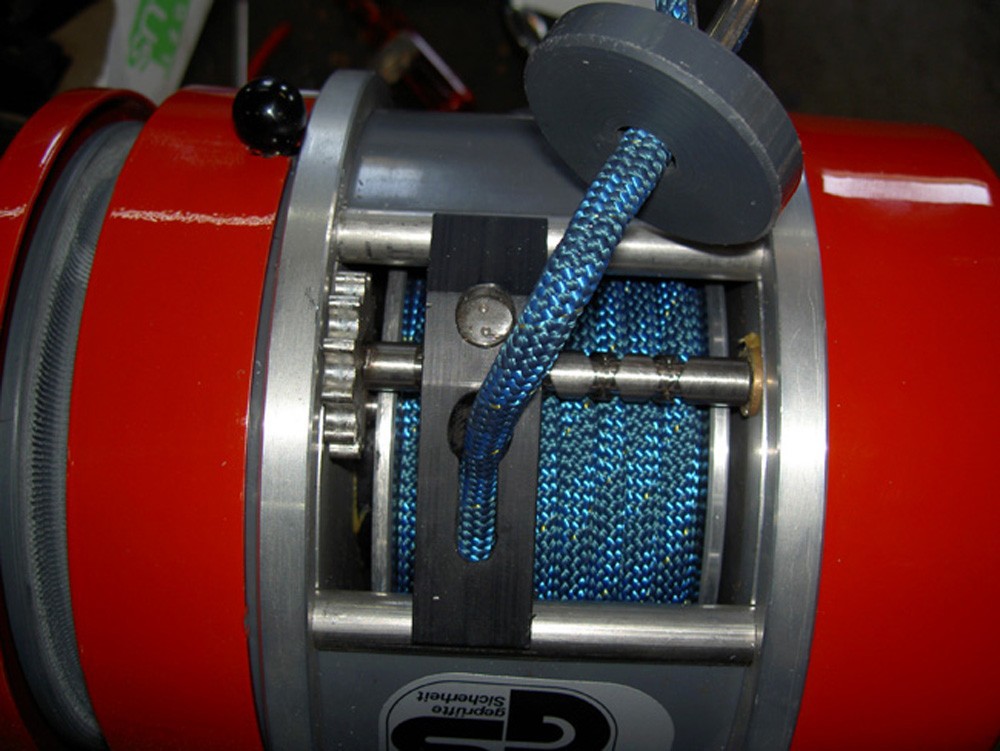

The SWI-TEC S-Klasse corresponds to the basic model “Classic”, has however additional modifications like e.g. a running along compulsory-cable-guide and a cable drum with flutes.

This winch can be used even more versatile. The “S-Klasse” is available in two models:

• 13 m Lifts
• 18 m Lifts

 The SWI-TEC “S-Klasse” is tested and admitted according to BGR 159 (securityregulating for high-ductile person-reception-methods) and to EN1808 for hanging person-reception-methods.

The “S-Klasse” is tested according to the newest European guidelines (EN1808) and for that reason admitted additionally also for using on facades.

Possibilities:

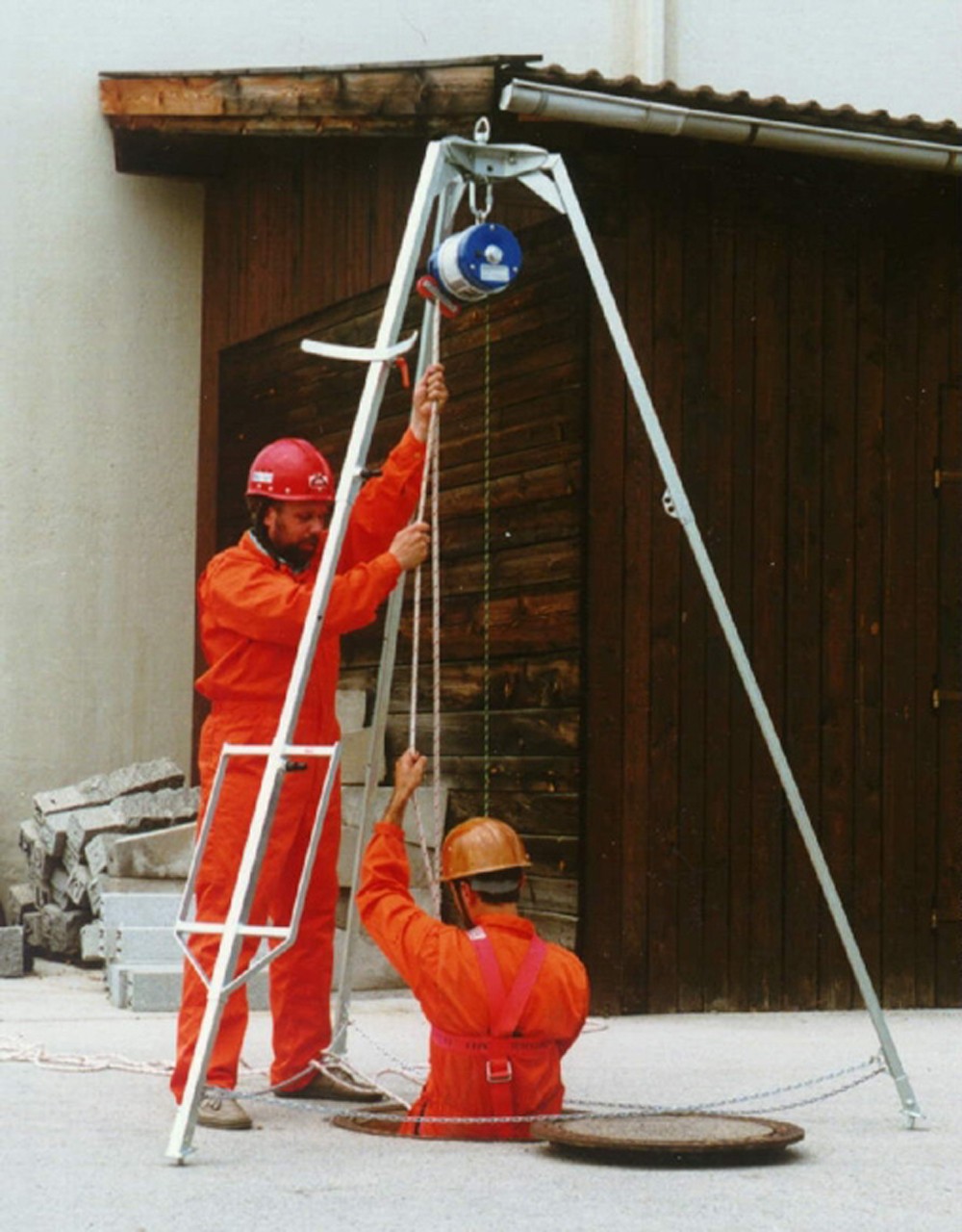

• Shaft inspecciones

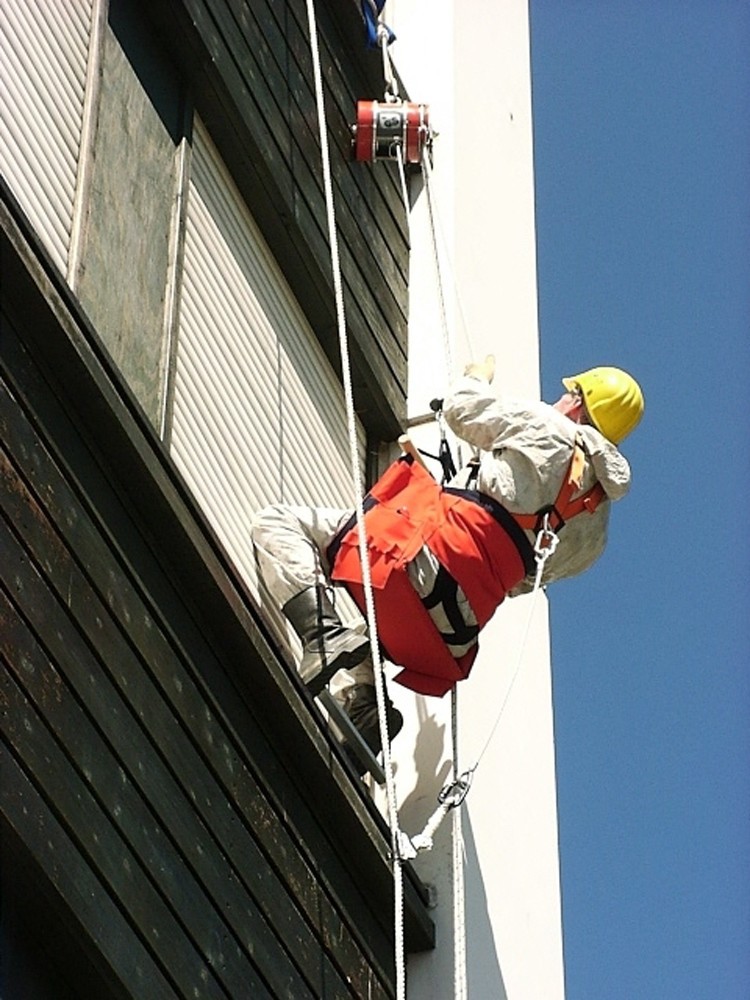

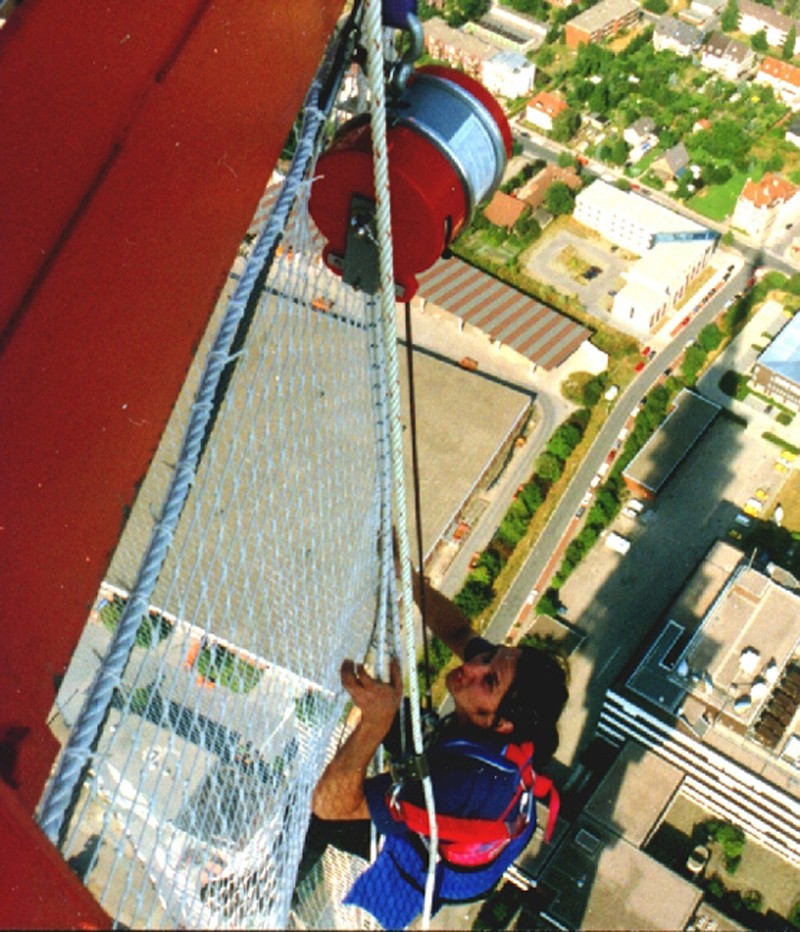

• Facade-repairs / -cleanings
• Inspections of silos etc.
• Person-rescue
• Fire brigade, communities, cable railways
• Mining and mast-construction
• Scaffolding
• Horticulture and forestry



The SWI-TEC work-and rescuewinches allow a versatile use. Whether at facades in shafts or for person-rescue- the handy SWI-TEC winches can be used everywhere. The Personal Winch can be used individually or with the help from another person.



Rule of the examining board:

According to rules of the professional association (UVV) and additional crash protection must always be installed during use with a winch!

The SWI-TEC…. simple, sure, compact!

Technical Data

• Operation height:
  • Article No. 3017 S-Klasse 13 m
  • Article No. 3018 S-Klasse 22 m



• Gear ratio: Generally: 1 :10 (Body-weight 80 Kg = power or traction 8 Kg
• Max. permitted load: 150 Kg (1 Person)

• Weight:
  • S-Klasse 13 m: 6.7 Kg
  • S-Klasse 22 m: 7.6 Kg

• Measurements:
  • 13 m Design: Ø = 165 mm l = 215 mm
  • 22 m Design: Ø = 185 mm l = 215 mm

• Carrying rope: Dyneema Line Ø 6 mm
• Safety weight load: 2500 daN (Kausche approx. 2200 daN)
• Material (outside parts): Stainless-steel, aluminium, plastic
• Material (inside parts): High-quality steel, aluminium
• Miscellaneous: Integrated double safety device. All the drive units are installed with needle rollers and are spray-water protected.
• Important: The suspension point of the winch must be able to carry at least a minimum of 750 Kg. The guidelines of the professional association of Germany are valid. BGR 159

• EN ISO 12100:2011-03    Sicherheit von Maschinen – Allgemeine Gestaltungsleitsätze – Risikobeurteilung und Risikominderung
• EN 1808:1999+A1:2010  Sicherheitsanforderungen an hängende Personenaufnahmemittel -Berechnung, Standsicherheit, Bau-Prüfungen (in Anlehnung)

National rules:

• BGR 159 Hochziehbare Personenaufnahmemittel (in Anlehnung).
